- Technics Sh-9010 Parametric Universal Equalizer Price in Pakistan
Technics Sh-9010 Parametric Universal Equalizer price and specificationsRs.9,500
Seller Information
Condition: 1, No Warranty
Ad Posted By Home User AD ID: 33817 used
|
|
 Input sensitivity & impedance: 1 V/47 kohms Frequency response: 10 Hz ~ 20 kHz, + 0, - 0,2 dB, 10 Hz ~ 70 kHz, + 0, - 3 dB Signal-to-noise ratio: 83 dB (DIN) Band level control: - 12 dB ~ 0 dB ~ + 12 dB (continuously variable) Centre frequency control: - 1,6 oct. ~ 0 ~ + 1,6 oct. (continuously variable) Bandwidth control: Q = 0,7 ~ 7 (continuously variable) Centre frequency: 60 Hz, 240 Hz, 1 kHz, 4 kHz, 16 kHz (5 points x 2) Power consumption: 8 W Power supply (AC): 110 ~ 240 V, 50/60 Hz Dimensions: 450 x 92 x 364 mm Weight: 6 kg Unit has 1 AC unswitched outlet 300 Watt max GOOD condition! has scratches and small dings from normal use, panel is in very good shape, top cover of the chassis has some corrosion. Special features: Flat design, 19-inch rack mounting. Amazing Sounding Equalizer for the Most Demanding Studio or Concert/Home Applications! Conventional graphic equalizers, as useful as they are in audio work, all suffer from two critical drawbacks which severely limit their scope of applications. First, each slide pot boosts or attenuates a fixed, immovable frequency band. No matter how these frequencies are chosen and spaced, however, it is only in rare cases that they will be at precisely the spot where boost or attenuation is desired. In a radical departure from the circuit principles found in conventional equalizers, Technics designed the SH-9010 with variable frequencies; by turning the control knob below each slide pot, the center frequency can be moved up or down by as much as 1.6 octaves. The five slide pots provided for each channel thus cover the following ranges: Normal Center Frequency Variable Between 60Hz 20Hz-180Hz 240Hz 80Hz-720Hz 1kHz 333Hz-3kHz 4kHz 1.3kHz-12kHz 16kHz 5.3kHz-48kHz As this adjustment is continuous, center frequencies can be set at accurately the desired points. What's more, settings are independent for each stereo channel. This flexibility gives the user unlimited freedom in coping with every imaginable equalization problem. As with the variable center frequencies, "Q" (or bandwidth) adjustment is also independent for each band of each stereo channel. The SH-9010 thus offers an infinite number of combinations of three types of adjustment: 1. Boost or attenuation by up to 12dB at five points in the frequency spectrum, in both stereo channels. 2. Precise setting of any or all of these five bands to any frequency, with more than an octave of overlap between two adjacent bands. 3. Free adjustment of "Q" for each frequency band, within the range of Q = 0.7 to 7. Incredible Technic's Build Quality ... Very Well Built! Same engineering than the bigga monaural SH-9090P but in a slim-line format, fitting the famed Professional Series which consisted of amps, preamps, equalizers and metering units all multiplied in various versions. Besides the format, also changed was the center frequency control, here pushed to plus or minus 1,6 octave for severely stacked corrections on the same frequency spot. The pushing is naturally due to the fact that the SH-9010 is stereo 5 bands and not a monaural 12-band parametric like the SH-9090P. The filtering circuits are otherwise the same: one adder-subtraction plus two integrators per filter, high impedance buffer amp and low output impedance output amp. Any serious offer would be consider. Feel free to contact about this or other listed products. Have a nice day n life ahead amen. 3days un-conditional return policy is applied to this n all other listed items, if u aren't satisfied or don't want it return within 3days of purchase){kind=link}
salam to those who believe in ALLAAH n day of Resurrection: here for offer is Technics SH-9010Ã,for Rs9500

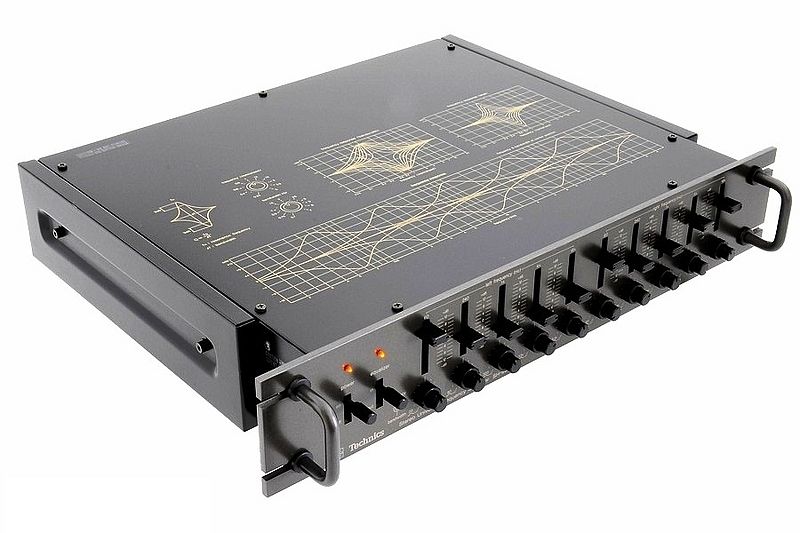

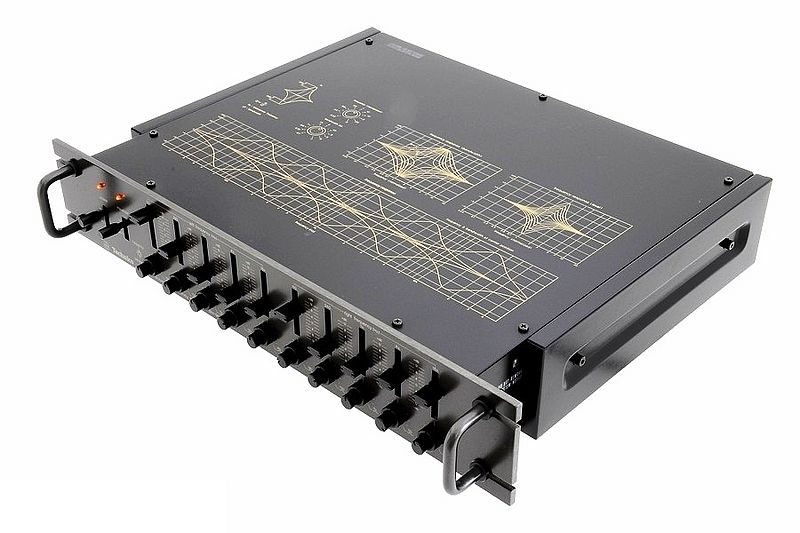

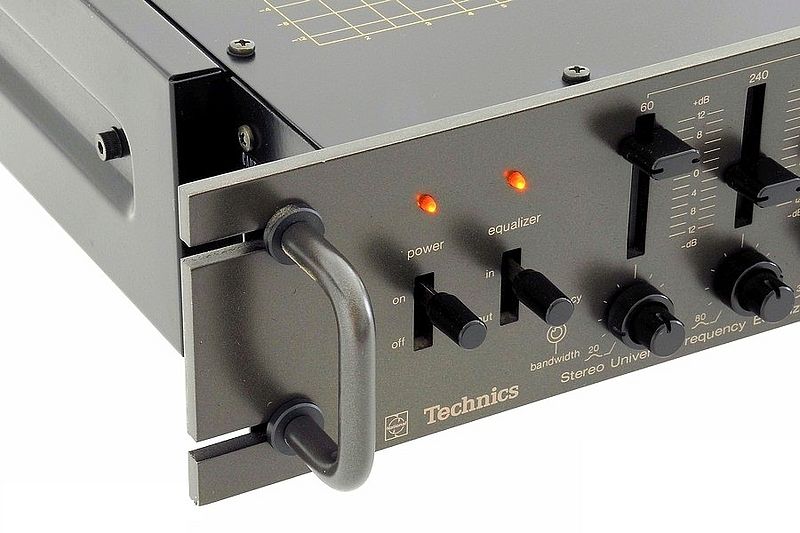

Technics Sh-9010 Parametric Universal Equalizer Of The Professional Series!
This is the highly regarded model the one that Arthur Salvatore recommends.
Specifications:
Manufacturer: MATSUSHITA ELECTRIC, Japan
Output voltage: Rated: 1 V, max. 5 V
THD: 0,02% (rated output voltage)
Input sensitivity & impedance: 1 V/47 kohms
Frequency response: 10 Hz ~ 20 kHz, + 0, - 0,2 dB, 10 Hz ~ 70 kHz, + 0, - 3 dB
Signal-to-noise ratio: 83 dB (DIN)
Band level control: - 12 dB ~ 0 dB ~ + 12 dB (continuously variable)
Centre frequency control: - 1,6 oct. ~ 0 ~ + 1,6 oct. (continuously variable)
Bandwidth control: Q = 0,7 ~ 7 (continuously variable)
Centre frequency: 60 Hz, 240 Hz, 1 kHz, 4 kHz, 16 kHz (5 points x 2)
Power consumption: 8 W
Power supply (AC): 110 ~ 240 V, 50/60 Hz
Dimensions: 450 x 92 x 364 mm
Weight: 6 kg
Unit has 1 AC unswitched outlet 300 Watt max
GOOD condition! has scratches and small dings from normal use, panel is in very good shape, top cover of the chassis has some corrosion.
Special features: Flat design, 19-inch rack mounting.
Amazing Sounding Equalizer for the Most Demanding Studio or Concert/Home Applications!
Conventional graphic equalizers, as useful as they are in audio work, all suffer from two critical drawbacks which severely limit their scope of applications. First, each slide pot boosts or attenuates a fixed, immovable frequency band. No matter how these frequencies are chosen and spaced, however, it is only in rare cases that they will be at precisely the spot where boost or attenuation is desired.
In a radical departure from the circuit principles found in conventional equalizers, Technics designed the SH-9010 with variable frequencies; by turning the control knob below each slide pot, the center frequency can be moved up or down by as much as 1.6 octaves. The five slide pots provided for each channel thus cover the following ranges:
Normal Center Frequency Variable Between
60Hz 20Hz-180Hz
240Hz 80Hz-720Hz
1kHz 333Hz-3kHz
4kHz 1.3kHz-12kHz
16kHz 5.3kHz-48kHz
As this adjustment is continuous, center frequencies can be set at accurately the desired points. What's more, settings are independent for each stereo channel. This flexibility gives the user unlimited freedom in coping with every imaginable equalization problem.
As with the variable center frequencies, "Q" (or bandwidth) adjustment is also independent for each band of each stereo channel. The SH-9010 thus offers an infinite number of combinations of three types of adjustment:
1. Boost or attenuation by up to 12dB at five points in the frequency spectrum, in both stereo channels.
2. Precise setting of any or all of these five bands to any frequency, with more than an octave of overlap between two adjacent bands.
3. Free adjustment of "Q" for each frequency band, within the range of Q = 0.7 to 7.
Incredible Technic's Build Quality ... Very Well Built!
Same engineering than the bigga monaural SH-9090P but in a slim-line format, fitting the famed Professional Series which consisted of amps, preamps, equalizers and metering units all multiplied in various versions.
Besides the format, also changed was the center frequency control, here pushed to plus or minus 1,6 octave for severely stacked corrections on the same frequency spot.
The pushing is naturally due to the fact that the SH-9010 is stereo 5 bands and not a monaural 12-band parametric like the SH-9090P.

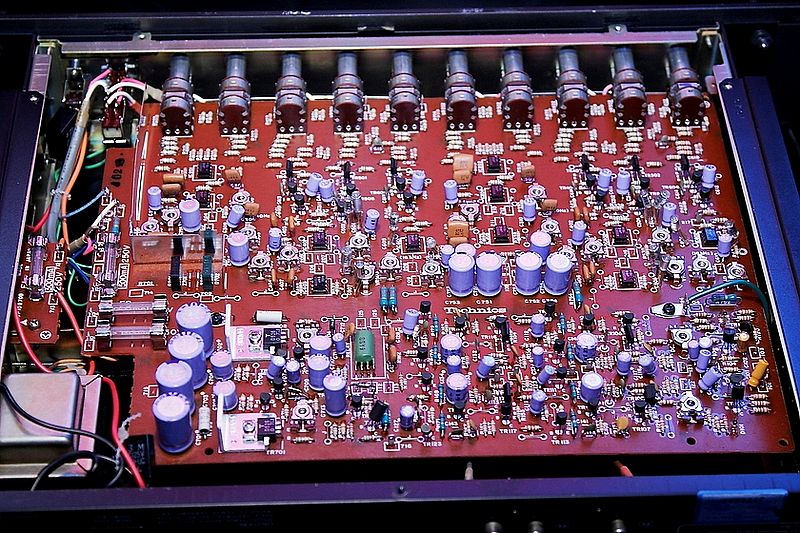

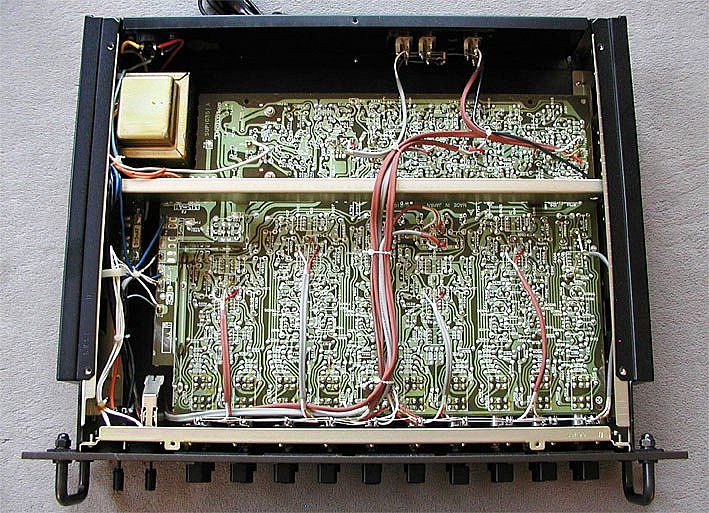

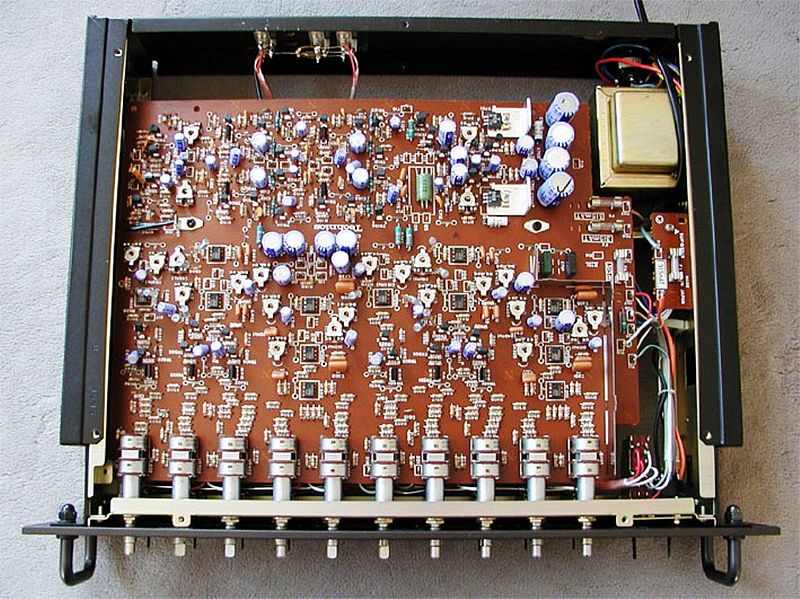

The filtering circuits are otherwise the same: one adder-subtraction plus two integrators per filter, high impedance buffer amp and low output impedance output amp.
Any serious offer would be consider. Feel free to contact about this or other listed products.
Have a nice day n life ahead amen.
3days un-conditional return policy is applied to this n all other listed items, if u aren't satisfied or don't want it return within 3days of purchase
